Peterwagen

Create living comfort anywhere! Our well-thought-out interior design concept creates space and possibilities without sacrificing anything.

Technical Data

Curb weight: 900 – 1300 kg (depending on model)
perm. Total weight: 1500kg / 1800kg
permissible speed: 80km/h
optional 100 km/h

Standard or raised off-road axle (+100 mm)

Total height: 2500mm
Internal height: 2000mm

Total length: 5300mm
Inner length: 3500mm

Total width: 2150mm
Internal width: 1905mm

Sleeps: 2 – 4

Peterwagen at a glance

  • Solid chassis hot-dip galvanized by ALKO
  • Frame made of galvanized/powder-coated sheet steel
  • 195/70R14C 104N complete wheels steel rim (silver)
  • Inside fender box made of galvanized sheet steel
  • Standard color RAL 7016 anthracite (in detail: front-rear side panels, fenders)
  • 13-pin connector, taillights, license plate lights, reversing lights
  • White front marker lights, red/white rear marker lights
  • 4x scissor supports integrated into the frame. including 1x crank
  • V-drawbar, steel frame hot-dip galvanized in an immersion bath
  • High-quality chassis components from AL-KO
  • Cross beams for high floor loads and rigidity in use
  • Overrun brake with automatic reversing function
  • Stainless steel Teflon-coated brake bowden cables
  • Automatic brake adjustment
  • Wheel chocks mounted with holders for safe parking
  • Jockey wheel with clamp 48mm
  • Storage ramp shaft

General structure

  • Complete structure including base made of 40 mm thick thermal sandwich material
  • PVC flooring glued across the entire area
  • Construction hot-dip galvanized and powder-coated in anthracite
  • Border and angle profiles made of aluminum powder-coated in anthracite

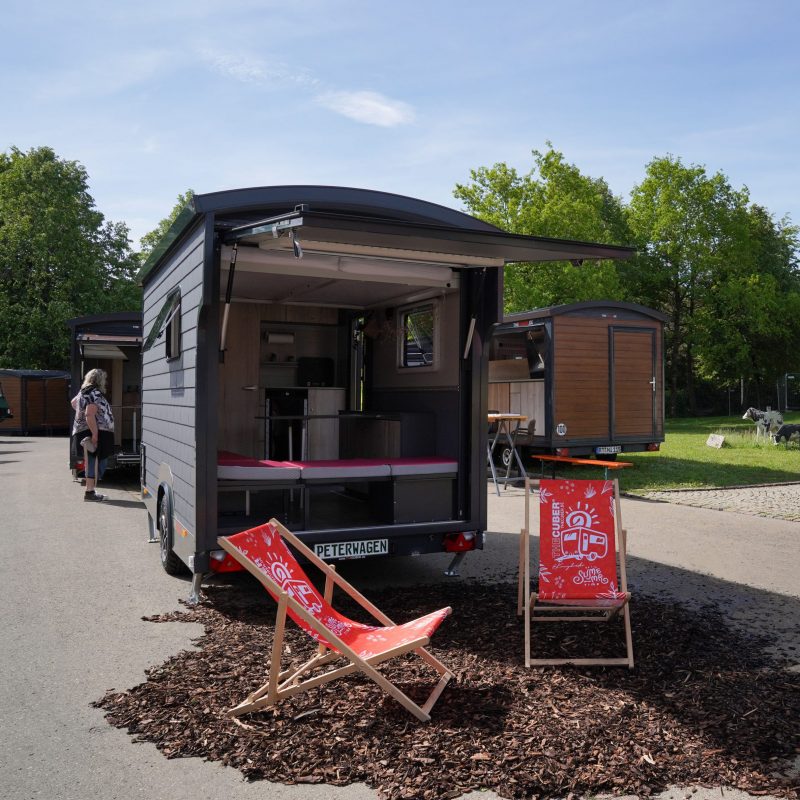

  • Rear wall or tailgate

Window with pleated blinds

  • 510×510 mm front wall right
  • 700×510 mm side walls
  • 800×510 mm side walls
  • 1000×510 mm side walls
  • 1300×510 mm tailgate in the middle

Tilt-and-turn window including roller shutter

  • 750x850mm side walls in white or anthracite
  • 400x1000mm tailgate

Doors

Possible in the right side wall or tailgate (homemade only).

  • Homemade Peterwagen 1740×630 mm (HxW)

Wood look 3D cladding

Slate look 3D lapped formwork

Foiling

  • Petri Heil

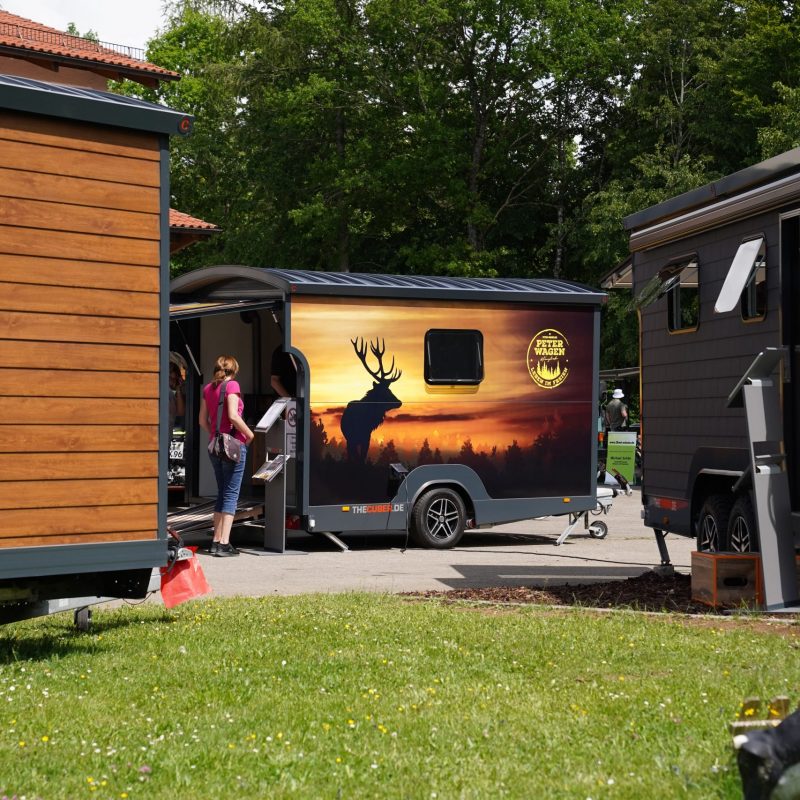

  • Deer in the sunset
  • Hunting fever

Desired foiling

Decors

  • Natural oak with anthracite and orange edges
  • Light oak with anthracite edges
  • Dark oak with anthracite and green edges
  • Green decor with anthracite edges

Upholstery

  • Seat and back upholstery made of imitation leather
    • Green, pink, gray, beige, blue or red
  • Seat and back cushions in microfiber gray or dark blue

Leather trim

  • Recycled genuine leather lining inside up to the dividing line
  • All of our furniture is equipped as standard with high-quality hinges and pull-outs with a load capacity of 25kg including a soft-close system.

Working line

  • 1200 mm wide with three segments:
    • left:
      Low drawer
      Drawer up
      Flap opens downwards
    • middle:
      Storage space for refrigerator
      optionally only with door
    • right:
      Storage space with door for fresh water canisters
  • Stainless steel sink with faucet (mixer tap)
  • Fresh water canister 30 liters (optionally additional 19 liter canister)
  • Water submersible pump 12 V

Upper cabinet

  • 1200 mm wide with two flaps opening upwards
  • mounted above the kitchenette

Corner room

Only possible in conjunction with the work line on the front wall.

  • following the work line
  • 700 mm internal width, 500 mm internal length (optional 650mm)
  • can be used as a wet room
  • Door offset by 45°
  • optional clothes hanger
  • optionally with shower: fittings, shower head and hot water boiler (installed in the left segment of the work line), roof hood
  • optionally as a toilet (mobile or permanently installed)
  • optionally as a complete package with shower and toilet

Bed

Electrically continuously adjustable fold-down bed with slatted frame including mattress with 80 mm height. Load capacity max. 250kg. Total width in the light of the body 1900 mm.

  • Longitudinal bed 2000×1750 mm (LxW)
  • Longitudinal bed 1900×1750 mm (LxW)
  • Transverse bed 1400×1750 mm (LxW)

Can be folded manually, mounted on the side or front wall

  • Folding bed 1900×770 mm (LxW)
  • Folding bed 1900x1400mm (LxW)

Sofa lounge

  • when extended it can be used as a lounger and when retracted it can be used as a seat
  • 1900×650 mm (LxW) lying surface when extended
  • Slatted frame and padding with 80 mm height (two-sided: fabric and artificial leather/microfiber)
  • including storage space (approx. 100 liters)
  • mobile use

Sideboard

  • Right direction of travel partially reserved for the on-board electronics
  • various versions
  • selectable on the right and left
  • Shelves

Tall cupboard

  • Explanations
    • narrow: 1900x400x300 mm (HxWxD)
    • wide: 2x 1900x400x300 mm (HxWxD)
    • 1900x600x300 mm (HxWxD)
  • Shelves

Benches

  • selectable on the right and left
  • Available lengths: 800mm, 1200mm, 1800mm
  • Hinged lid over the entire length
  • Storage space forcibly ventilated by gill plate
  • possible in combination with the folding bed
  • Seat and back cushions
  • mobile use

Room bathroom

Only possible in conjunction with the rear work line.

  • Room partition on the right next to the work line
  • Wall cabinet narrow left
  • Wall cabinet wide on the left
    • Combined door as a cupboard door and room divider
  • optionally as a shower room
  • 230 volt external socket/feed 230 volt
    • 12 volt charging cable from the towing vehicle to the on-board battery
    • 230 volt charger to 12 volts
    • FI fuse box 230 volts
    • autom. Consumer shutdown when coupling
  • LED ceiling light 2000mm length in aluminum channel with protective cover
  • Insulation switch
  • 2x 230V sockets
  • 12V USW/C socket
  • Lithium battery 12V 100 AH MASTERVOLT with main switch

Our innovative and patented 2in1 drive-on combination. Can be used as a loading ramp with a width of up to 1000 mm and a load capacity of 400 kg (table) or as a cozy beer table set.

Set includes: 1x table 2000×500 mm, 2x bench 2000×250 mm (LxW)< /p>

Exterior extras

  • Chassis GVW 1800kg
  • Chassis GVW 1500kg Offroad
  • Chassis GVW 1800kg Offroad
  • Chassis GVW 2500kg off-road (tandem)
  • Increase body by 150mm (total height and interior height) Adventure
  • Increase body by 200mm (total height and interior height) Peterwagen
  • Increase overrun brake 40mm or 70mm
  • Anti-sway clutch
  • 100 km/h approval< /li>
  • Theft lock box for trailer
  • Safety Compact Silver for anti-sway coupling
  • Light alloy rims
  • Off-road tires
  • Al-KO Mammut maneuvering aid
  • Drawbar box high and low empty
  • Roof air conditioning (installation height +200mm)
  • LED strip set for awning
  • Exterior light above side door
  • Solar panel
  • Water socket with premixer, shower and lock
  • City Water regulator
  • piping profile
  • Awning
  • Combination access rails
  • Water Taxi



Extras Interior

  • 2, 3 or 4 airline rails sunk lengthways into the floor
  • Insect protection pleated side door
  • Insect protection pleated tailgate
  • Insect protection pleated turn-tilt window in white or anthracite
  • 230V socket
  • 230V Swiss sockets
  • 12V socket
  • 12V USB socket
  • Auxiliary heater (diesel) in the small drawbar box or large drawbar box
  • LED light strip with switch below the upper cabinet
  • LED light strip with dimmer switch inside tailgate
  • 12V LED wall light with USB
  • Inverter 1500W
  • Shower version in corner cabinet, room bathroom or front room bathroom
  • Thetford bench toilet
  • Clesana C1 toilet
  • Toilet portable
  • Refrigerator
  • Airline rails Structure on the side walls
  • Fittings for airline rails
  • Motorcycle rocker
  • < li class="li1">Motorcycle lashing strap set

  • Mini wood stove
  • Stool
  • Table for C-rail

Both the access ramp and the cassette lift are installed at the rear.

  • manually extendable access ramp
    • Platform size 2700 x 800 mm (LxW)
  • electrically extendable cassette lift for effortless entry and exit into the trailer with a wheelchair
    • Load capacity 300 kg
    • Lifting platform size 1200 x 760 mm (LxW)

Hints:
All dimensions given are approximate!
Similar representations and colors.
Interior side furniture partly with wheel arch cutout!

Explanations

The different versions differ in the number of sleeping places and different furnishings. Detailed information about the equipment and accessories can also be found in the Overview section.

All of the following versions include a work area, a wall cabinet and (almost always) a corner cabinet and an electrically adjustable fold-down bed.

2/3-bed Peterwagen

PW 3520 2K001
  • Folding bed 1400x1900mm
    installed transversely
  • Side cabinet right and left 800x1000mm (LxH)
  • Bench right and left 800mm
  • Bench across 1800mm
PW 3520 2Q003
  • Transverse bed 1900x1400mm (WxL)
  • Side cabinet right and left 800x1000mm (LxH)
  • Bench right and left 800mm
  • Bench across 1800mm

PW 3520 2Q010 RB

  • Transverse bed 1900x1400mm (WxL)
  • Side cabinet right and left 800x1000mm (LxH)
  • Seat right and left 1200mm
  • Storage cabinet
  • Peterwagen room bathroom

PW 3520 2K011 RB

  • Folding bed 1400x1900mm
    installed transversely
  • Side cabinet right and left 800x1000mm (LxH)
  • Bench right and left 800mm
  • Bench across 1800mm
  • Peterwagen room bathroom
PW 3520 3L010
  • Longitudinal bed 1750x2000mm (WxL)
  • Side cabinet right and left
    1800x800x310mm (LxHxD)
  • Sofalounge
PW 3520 3L011
  • Longitudinal bed 1750x2000mm (WxL)
  • Side cabinet right 1800x800x310mm (LxHxD)
  • Left bench seat 1200mm
  • Narrow tall cabinet
  • Sofa lounge
PW 3520 3L012
  • Longitudinal bed 1750x2000mm (WxL)
  • Bench right and left 1200mm
  • Narrow tall cabinet
  • Side cabinet right 400x1000x450mm (LxHxD)
  • Sofalounge
PW 3520 3Q010
  • Transverse bed 1900x1400mm (WxL)
  • Side cabinet right 800x1000x450mm (LxHxD)
  • Right bench 800mm
  • Left bench 1200mm
  • Narrow tall cabinet
  • Sofalounge
PW 3520 3Q011
  • Transverse bed 1900x1400mm (WxL)
  • Side cabinet right and left 800x1000mm (LxH)
  • Bench right and left 800mm
  • Sofalounge
PW 3520 3Q012
  • Transverse bed 1900x1400mm (WxL)
  • Side cabinet right 800x1000mm (LxH)
  • Right bench 800mm
  • Left bench 1200mm
  • Sofalounge
PW 3520 3Q013
  • Transverse bed 1900x1400mm (WxL)
  • Side cabinet right 800x1000mm (LxH)
  • Right bench 800mm
  • Left bench 1800mm
  • Sofalounge
PW 3520 3Q014
  • Transverse bed 1900x1400mm (WxL)
  • Side cabinet right and left 1800x800x310mm (LxHxD)
  • Sofalounge
PW 3520 3Q015
  • Transverse bed 1900x1400mm (WxL)
  • Side cabinet right 1800x800x310mm (LxHxD)
  • Left bench 1200mm
  • Narrow tall cabinet
  • Sofalounge

4-bed Peterwagen

PW 3520 4L010
  • Longitudinal bed 1750x2000mm (WxL)
  • Folding bed 770x1900mm (side attachment)
  • Left bench seat 1800mm
  • Side cabinet on the right
    1800x800mm (LxH)
  • Sofa lounge
PW 3520 4L011
  • Longitudinal bed 1750x2000mm (WxL)
  • Folding bed 770x1900mm (side attachment)
  • Side cabinet on the right
    1800x800mm (LxH)
  • Sofalounge
PW 3520 4Q010
  • Transverse bed 1900x1400mm (WxL)
  • Folding bed 770x1900mm (side attachment)
  • Left bench 1800mm
  • Right bench 800mm
  • Side cabinet right 800mm
  • Sofalounge
PW 3520 4Q011
  • Transverse bed 1900x1400mm (WxL)
  • Folding bed 770x1900mm (side attachment)
  • Right bench 800mm
  • Side cabinet right 800mm
  • Sofalounge
PW 3520 4Q012
  • Transverse bed 1900x1400mm (WxL)
  • Folding bed 770x1900mm (side attachment)
  • Side cabinet on the right
    1800x800mm (LxH)
  • Sofalounge
PW 3520 4Q013
  • Transverse bed 1900x1400mm (WxL)
  • Folding bed 770x1900mm (side attachment)
  • Left bench 1800mm
  • Side cabinet on the right
    1800x800mm (LxH)
  • Sofalounge
PW 3520 4Q004
  • Transverse bed 1900x1400mm (WxL)
  • Side cabinet right and left 800x1000mm (LxH)
  • 2xSofalounge
  • Storage cabinet
PW 3520 4Q014 RB
  • Transverse bed 1900x1400mm (WxL)
  • Side cabinet right and left 800x1000mm (LxH)
  • 2xSofalounge
  • Storage cabinet
  • Peterwagen room bathroom

Which Cuber is yours?

Have you found your Peterwagen or still need help? Please contact us for individual and professional advice and arrange an appointment with us.
