Peterwagen TANDEM

• Solid chassis hot-dip galvanised by ALKO
• Galvanised/powder-coated sheet steel frame
• 195/70R14C 104N complete wheels with steel rims (silver)
• Mudguard box inside made of galvanised sheet steel
• Standard colour RAL 7016 anthracite (in detail: front/rear side panels, mudguards)
• 13-pin plug, tail lights, licence plate lights, reversing lights
• Front marker lights white, rear red/white
• 4x scissor supports integrated in the frame. incl. 1x crank handle
• V-drawbar, hot-dip galvanised steel frame
• High-quality chassis components from AL-KO
• Crossbars for high floor load and rigidity of use
• Overrun brake with automatic reverse function
• Stainless steel Teflon-coated brake bowden cables
• Automatic brake adjustment
• Wheel chocks mounted with holder for safe parking
• Support wheel with 48 mm clamp
• Storage ramp shaft

General structure

• Complete structure incl. floor in 40 mm thick thermal sandwich material
• PVC floor covering glued over the entire surface
• Hot-dip galvanised and powder-coated structure in anthracite
• Aluminium edging and angle profiles powder-coated in anthracite
• Rear wall or tailgate

Window with pleated blind

• 510×510 mm front wall right
• 700×510 mm side walls
• 800×510 mm side walls
• 1000×510 mm Side walls
• 1300×510 mm Centre tailgate

Tilt and turn window including roller shutter

• 750x850mm side walls in white or anthracite
• 400x1000mm tailgate

Doors

Possible in the right side wall or tailgate (only self-construction).

• Self-built Peterwagen 1740×630 mm (HxW)

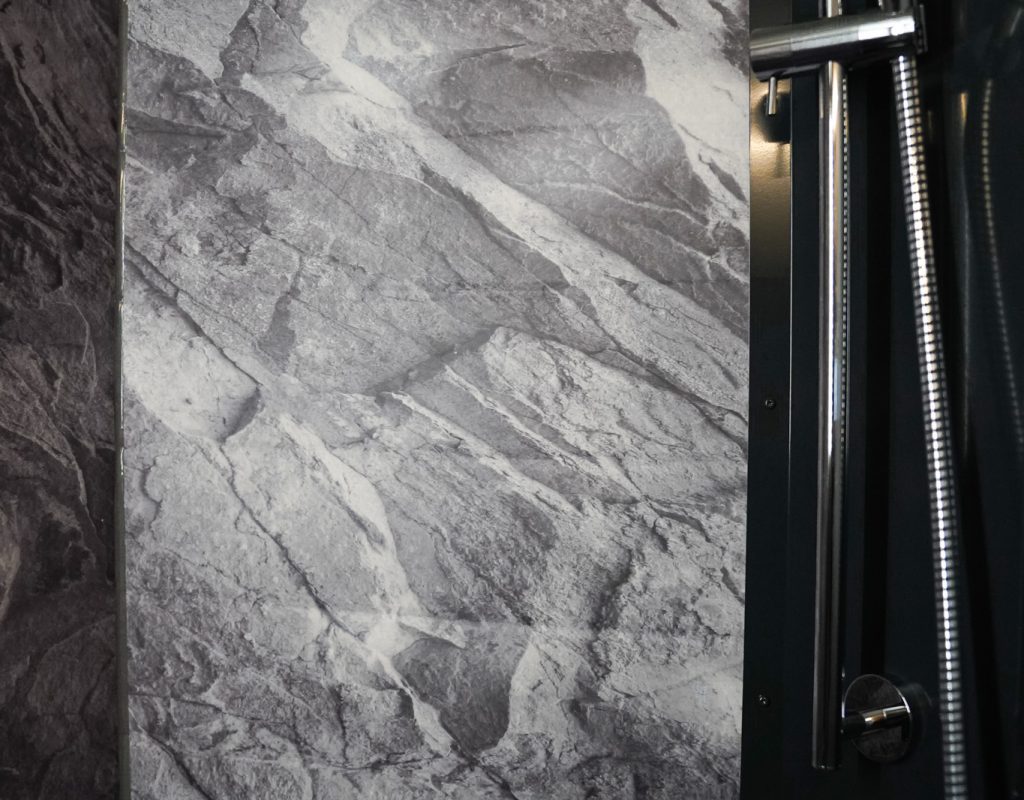

Wood-effect 3D cladding

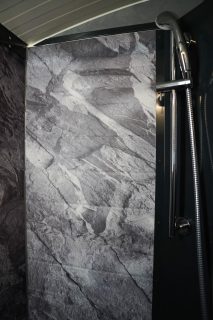

Slate look 3D cladding

Foiling

• Petri hail
• Stag in the sunset
• Hunting fever

Customised foiling

Decors

• Natural oak with anthracite and orange edges


• Light oak with anthracite edges


• Dark oak with anthracite and green edges


• Green decor with anthracite edges


Upholstery

• Seat and backrest upholstery in imitation leather

Green, pink, grey, beige, blue or red

• Seat and backrest upholstery in grey or dark blue microfibre

Leather panelling

• Recycled genuine leather panelling inside up to the dividing line

• All our furniture is fitted with high-quality hinges and pull-outs with a 25kg load capacity including soft-close system as standard.

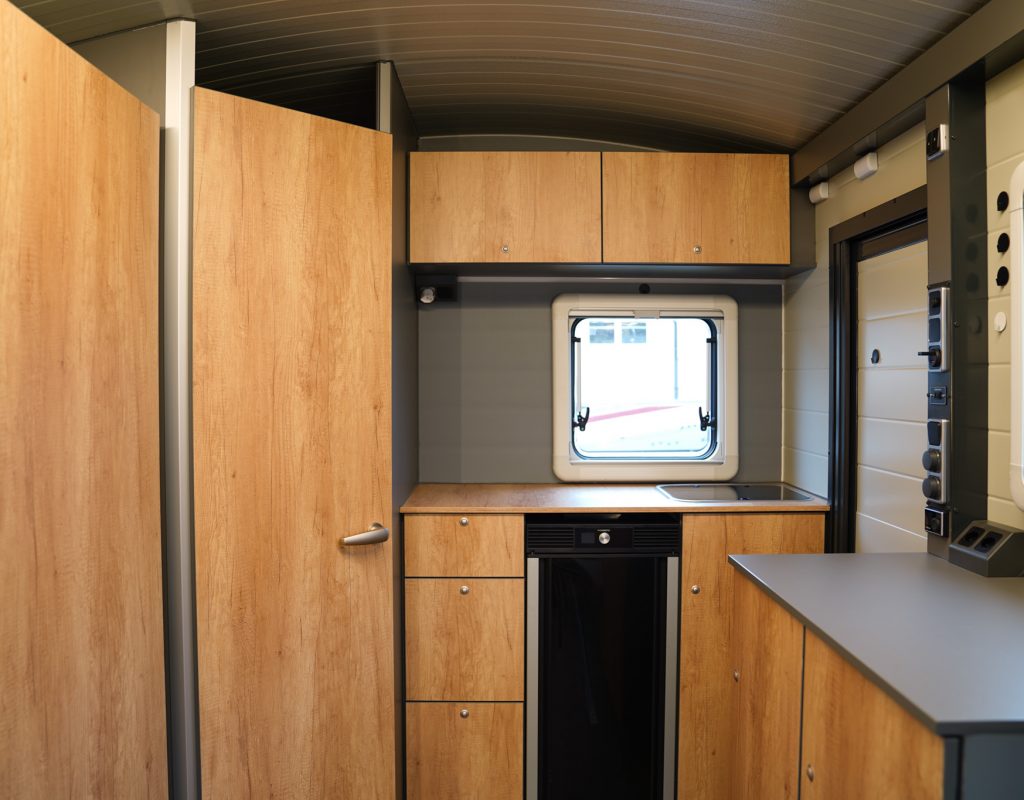

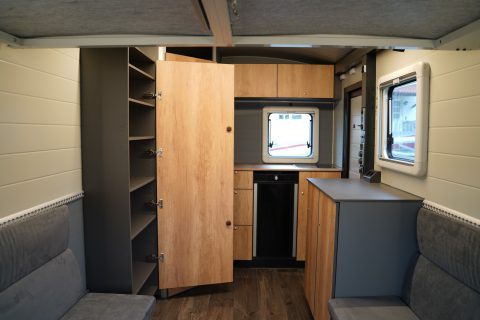

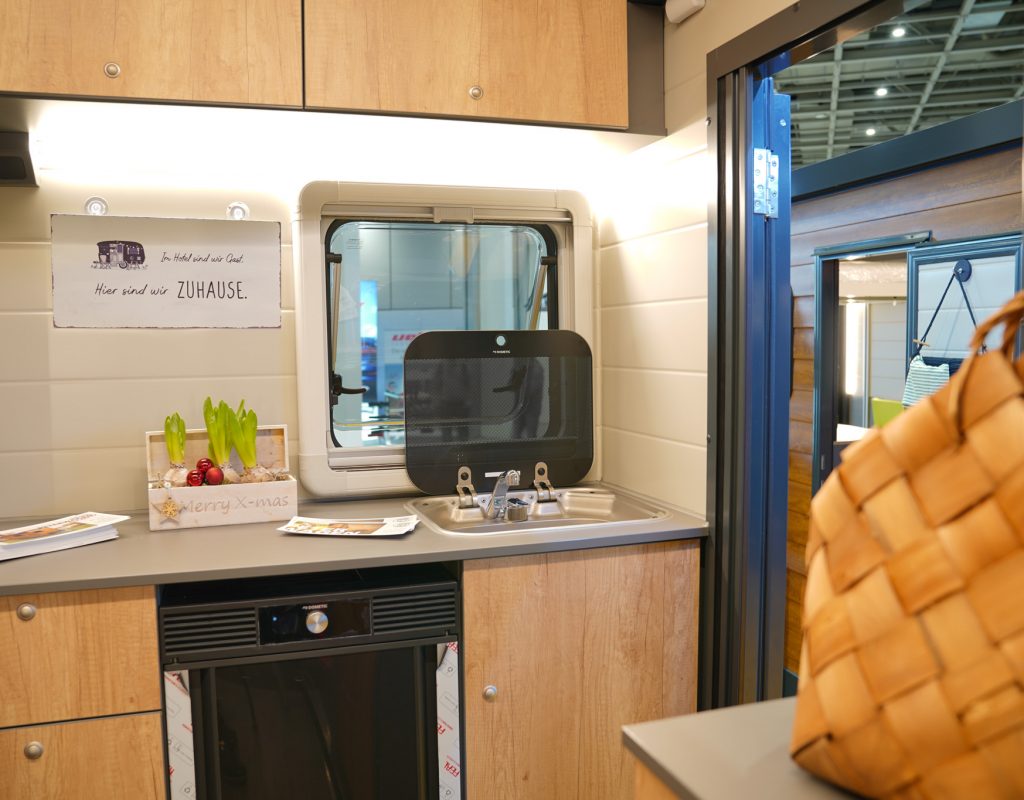

Work line

• 1200 mm wide with three segments:
  left:
  Low drawer
  High drawer
  Flap opening downwards
• in the centre:
  Storage space for fridge
  optional with door only
• right:
  Storage space with door for fresh water canister
• Stainless steel sink with tap (mixer tap)
• Fresh water canister 30 litres (optional additional 19 litre canister)
• Submersible water pump 12 V

Wall unit

• 1200 mm wide with two flaps opening upwards
• Mounted above the kitchen unit

Corner space

Only possible in conjunction with the worktop on the front wall.

• Adjacent to the worktop
• 700 mm internal width, 500 mm internal length (optional 650 mm)
• Can be used as a wet room
• Door offset by 45°
• optional clothes hanger
• Optional with shower: fittings, shower head and hot water boiler (installed
• in the left-hand segment of the work unit), roof hood
• Optional as WC (mobile or permanently installed)
• Optional as a complete package with shower and WC

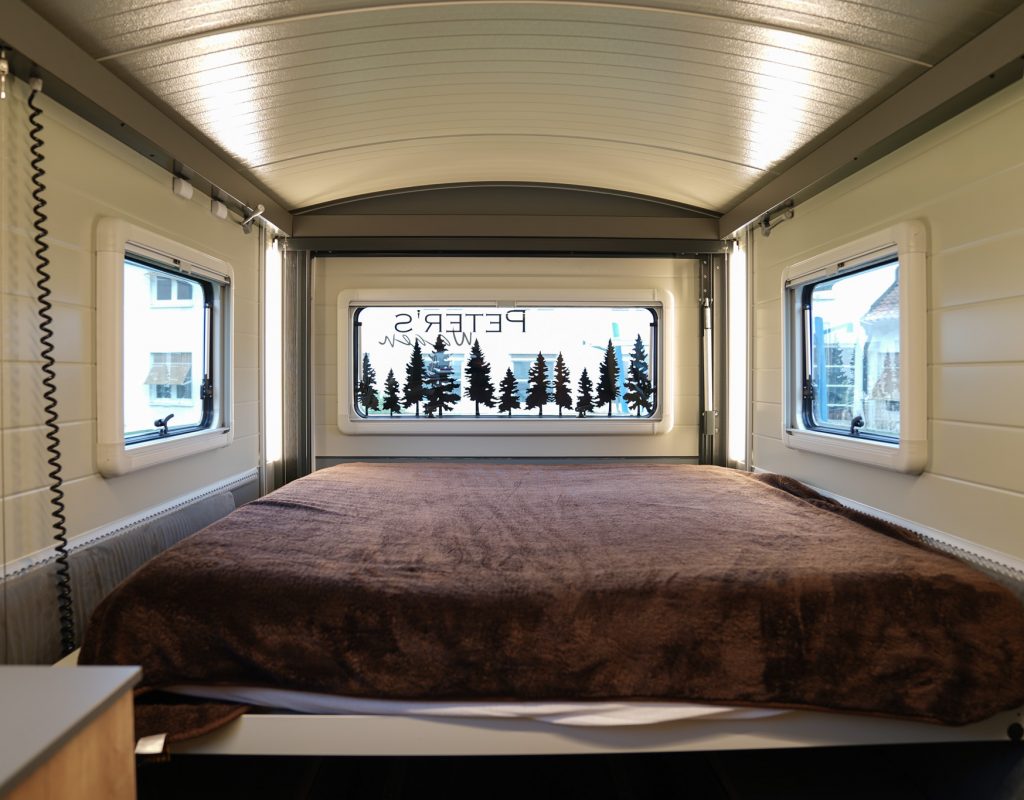

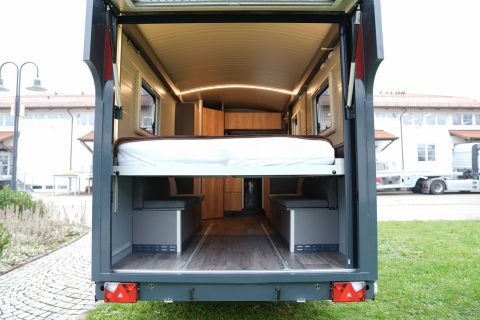

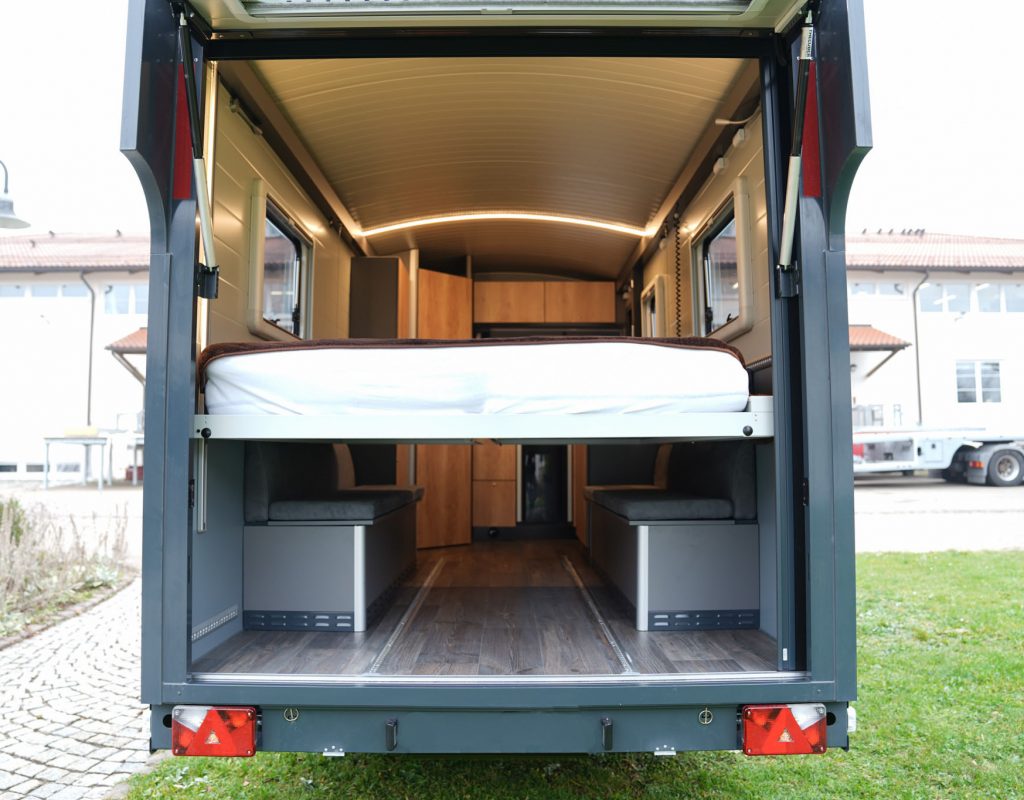

Bed

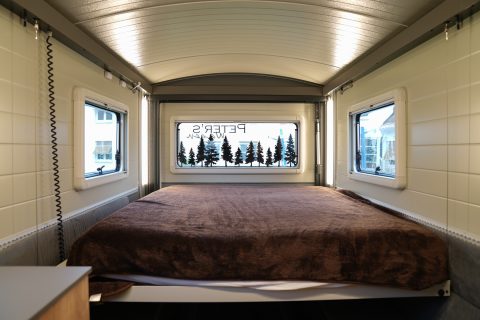

Electrically infinitely adjustable drop-down bed with slatted frame incl. mattress 80 mm high. Max. load capacity 250kg. Total width in the light of the body 1900 mm.

• Lengthways bed 2000×1750 mm (LxW)
• Lengthways bed 1900×1750 mm (LxW)
• Transverse bed 1400×1750 mm (LxW)

manually foldable, side or front wall attachment

• Folding bed 1900×770 mm (LxW)
• Folding bed 1900×1400 mm (LxW)

Sofa lounge

• Can be used as a lounger when extended and as a seat when retracted
• 1900×650 mm (LxW) lying surface when extended
• Slatted frame and upholstery 80 mm high (two-sided: fabric and imitation leather/microfibre)
• Storage space included (approx. 100 litres)
• mobile use

Sideboard

• Right-hand direction of travel partly reserved for the on-board electronics
• Various designs
• right and left selectable
• Shelves

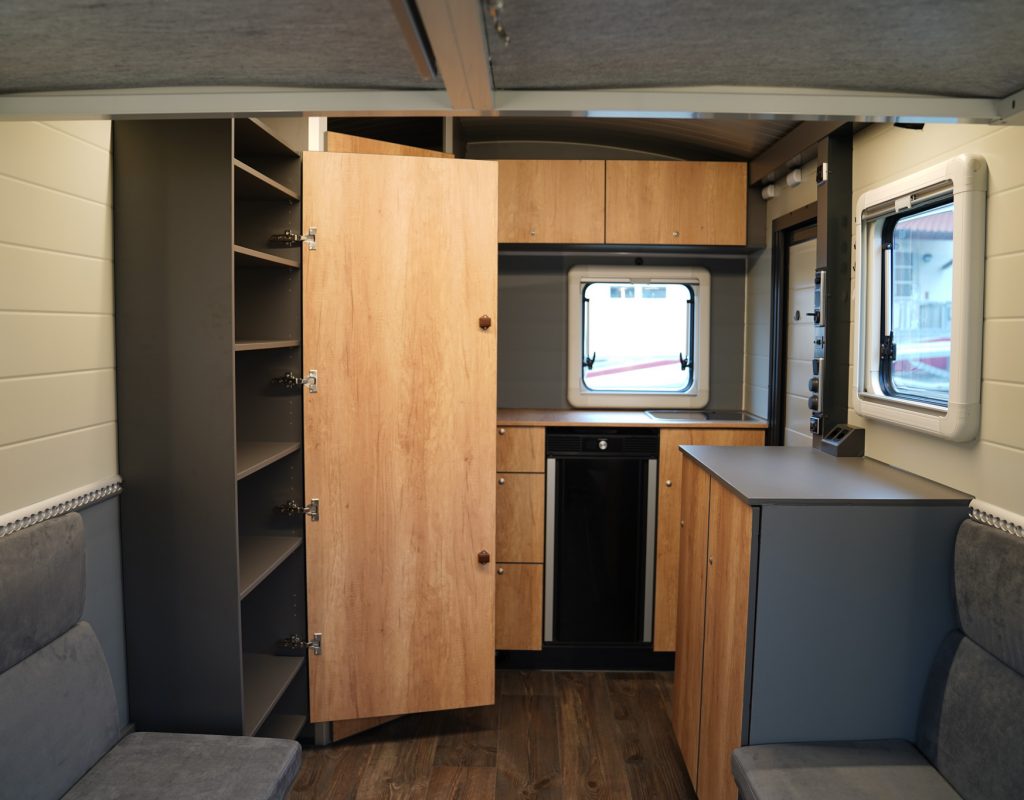

Tall cabinet

• versions
  narrow: 1900x400x300 mm (HxWxD)
  wide: 2x 1900x400x300 mm (HxWxD)
  1900x600x300 mm (HxWxD)
• Shelves

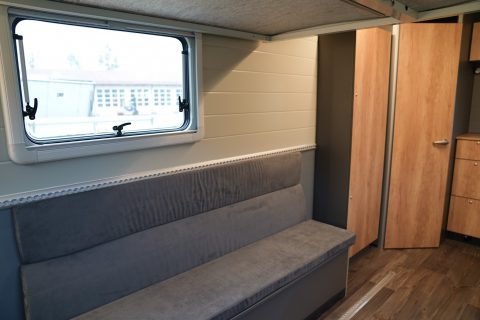

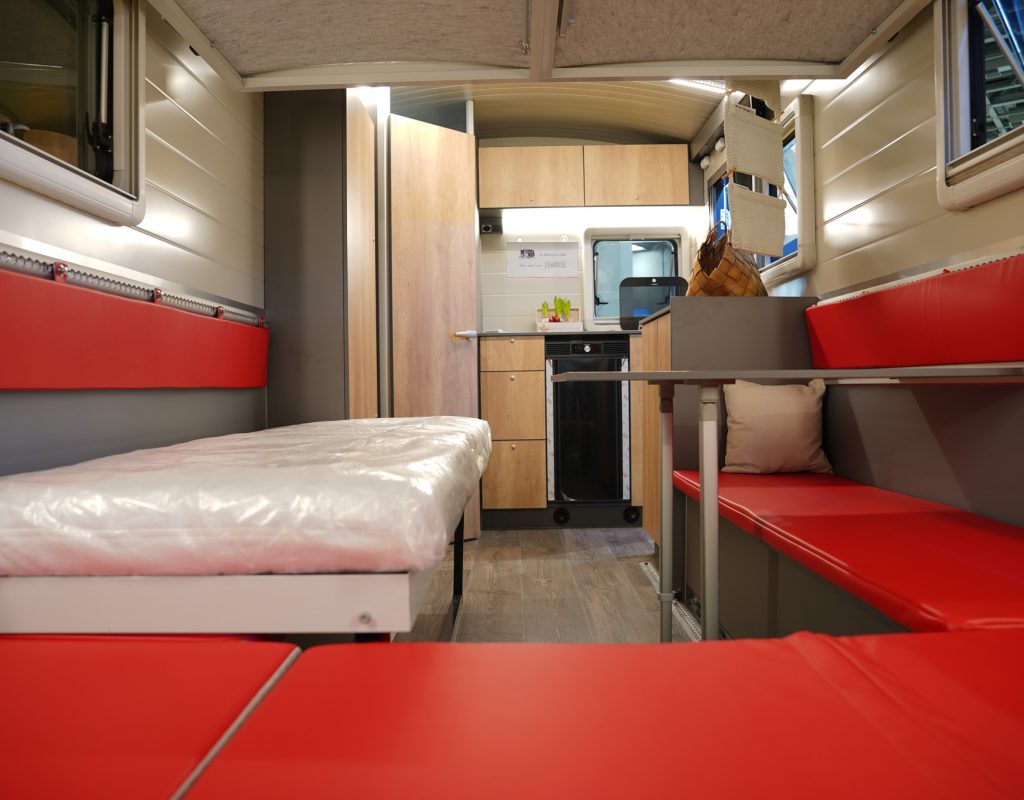

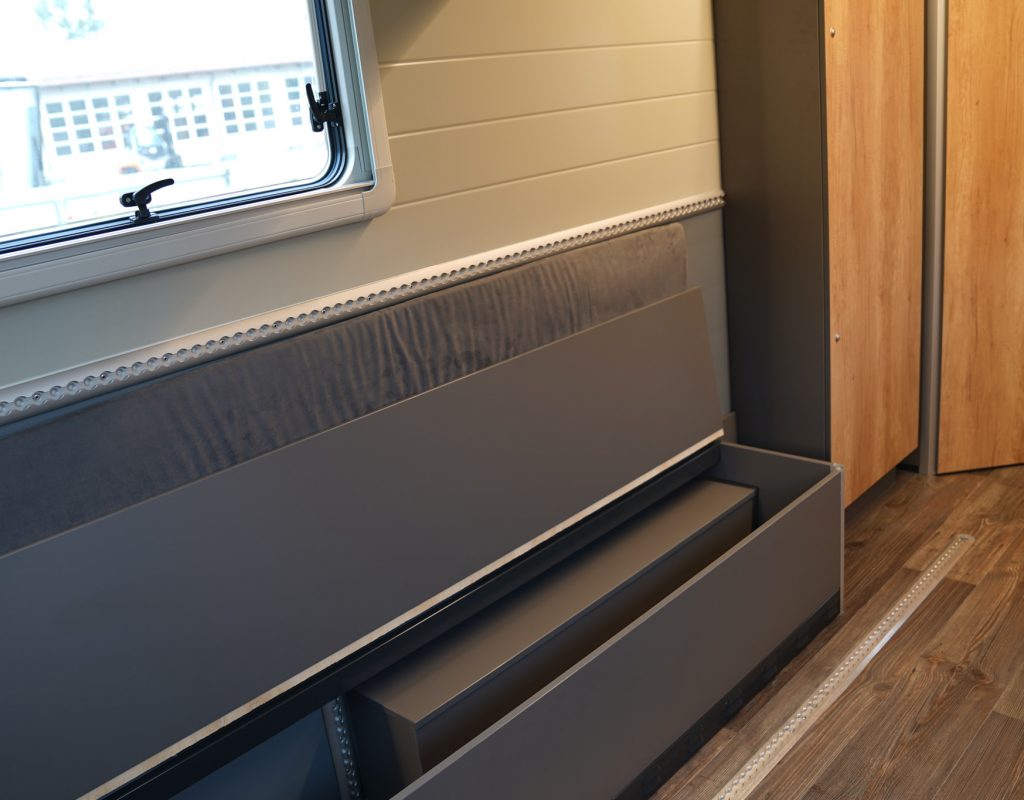

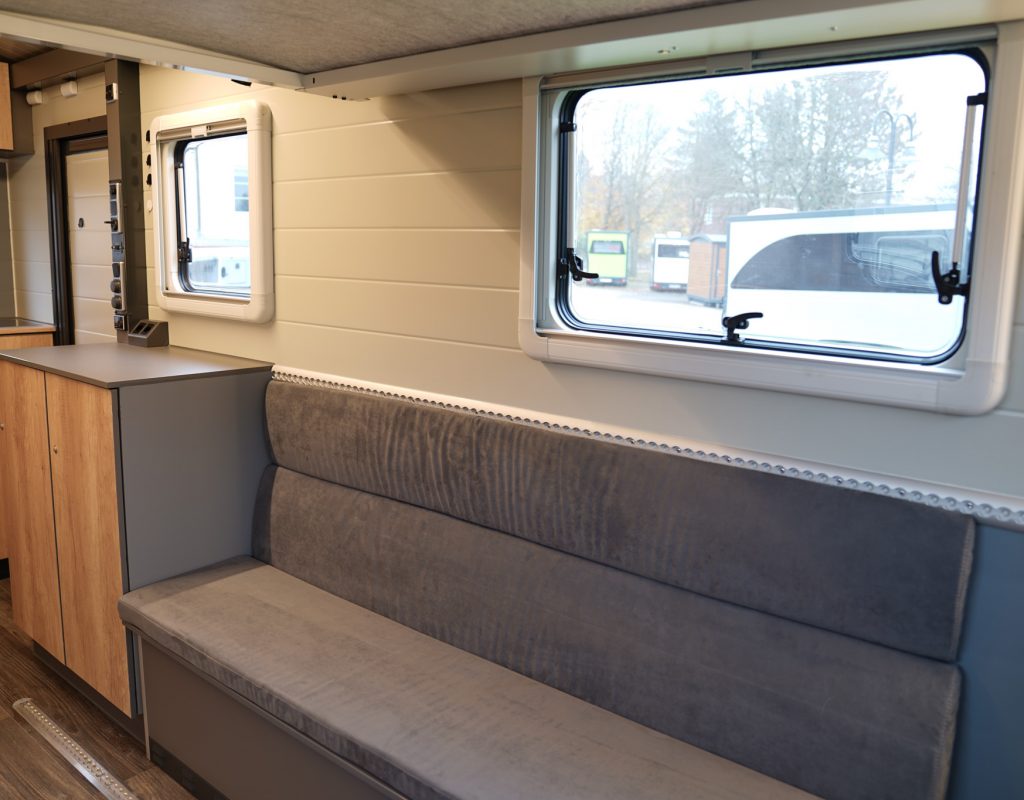

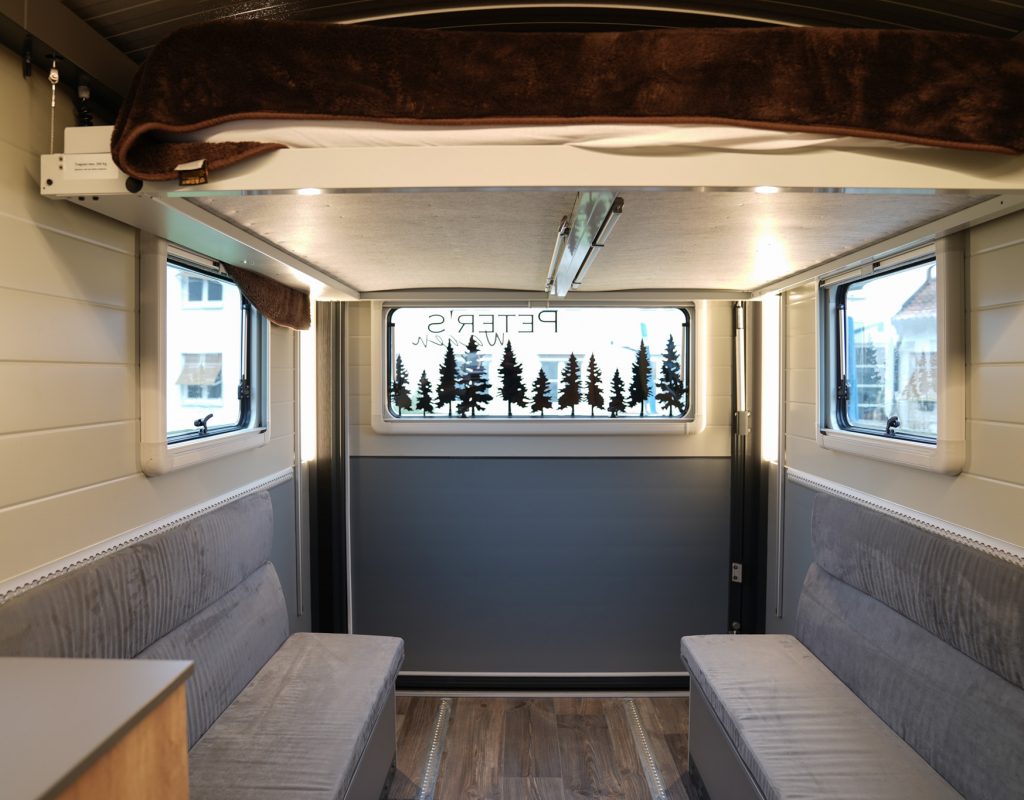

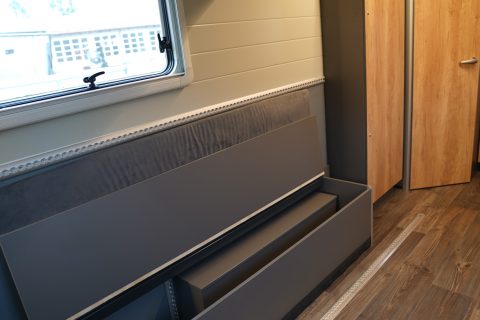

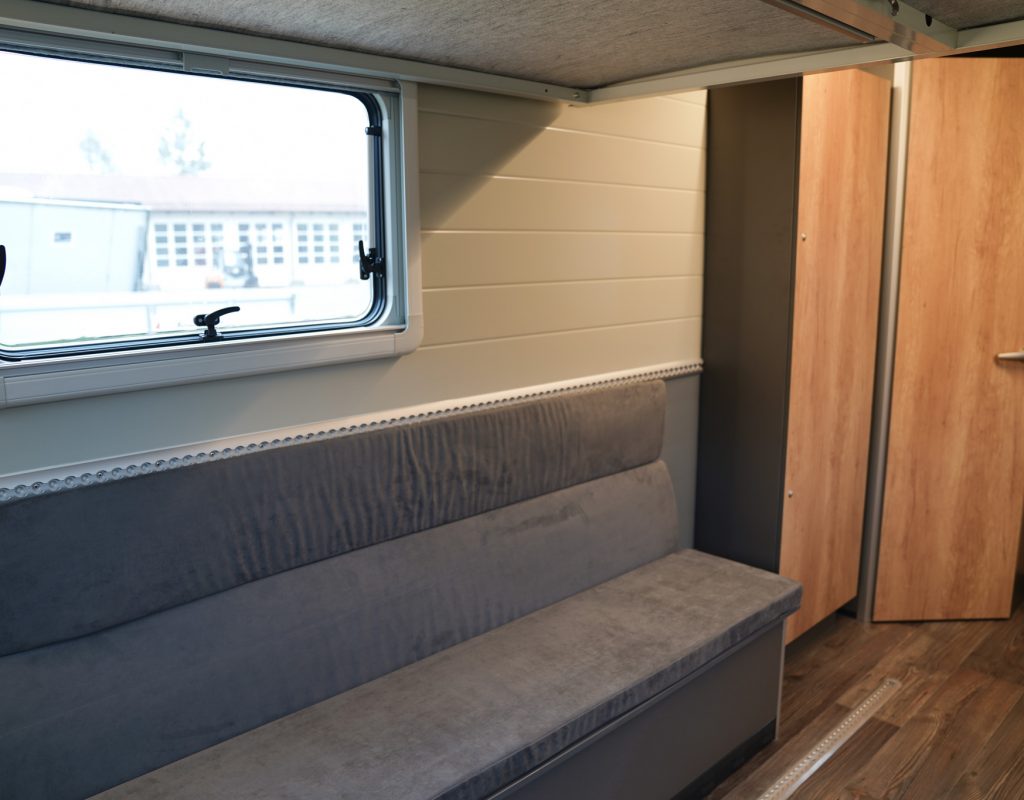

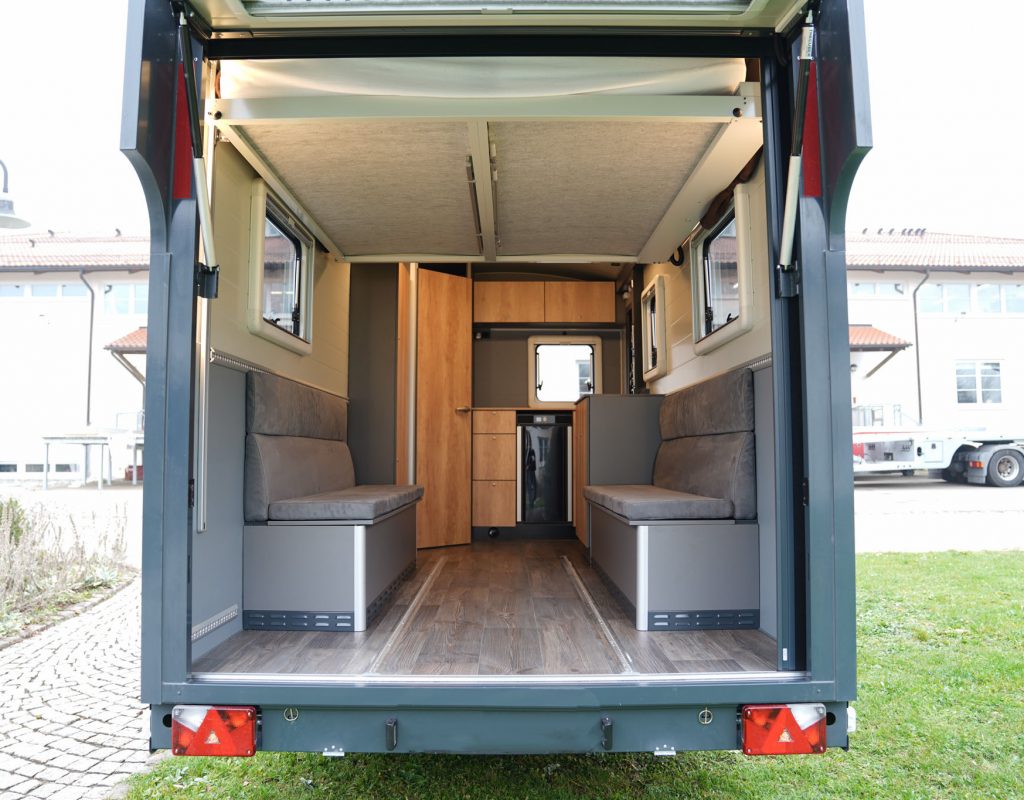

Benches

• right and left selectable
• Available lengths: 800mm, 1200mm, 1800mm
• Hinged lid over the entire length
• storage space with forced ventilation through gill plate
• possible in combination with the folding bed
• Seat and back cushions
• mobile use

Bathroom

Only possible in combination with the rear work unit.

• Room partition on the right next to the work unit
• Wall cupboard narrow left
• Wall cupboard wide left
  Combined door as cupboard door and room divider
• Optional as shower room

• 230 volt external socket/ 230 volt power supply
  12 volt charging cable from towing vehicle to on-board battery
  230 Volt charger to 12 Volt
  RCD fuse box 230 Volt
  Automatic consumer switch-off when coupling
• LED ceiling light 2000mm long in aluminium channel with protective cover
• Dimmer switch
• 2x 230V socket outlet
• 12V USW/C socket outlet
• Lithium battery 12V 100 AH MASTERVOLT with main switch

Our innovative and patented 2-in-1 drive-on combination. Can be used as a loading ramp with a width of up to 1000 mm and a load capacity of 400 kg (table) or as a cosy beer table set.

Set includes: 1x table 2000×500 mm, 2x bench 2000×250 mm (LxW)

Exterior extras

• Chassis GVW 1800kg
• Chassis tGG 1500kg off-road
• Chassis tGG 1800kg Offroad
• Chassis GVW 2500kg off-road (tandem)
• Increase body by 150mm (overall height and interior height) Adventure
• Raise body by 200mm (overall height and interior height) Peterwagen
• Raise overrun brake by 40mm or 70mm
• Anti-sway clutch
• 100 km/h approval
• Anti-theft lock box for trailer
• Safety Compact silver for anti-skid coupling
• Light alloy rims
• Off-road tyres
• AL-KO Mammut manoeuvring aid
• Drawbar box high and low empty
• Roof air conditioning system (body height +200mm)
• LED strip set for awning
• Exterior light above side door
• Solar panel
• Water socket with pre-mixer, shower and lock
• City water regulator
• Keder profile
• Awning
• Combination drive-on rails
• Water taxi

Interior extras

• 2, 3 or 4 airline rails recessed lengthways in the floor
• Pleated insect screen on side door
• Pleated insect screen tailgate
• Pleated insect screen tilt and turn window in white or anthracite
• 230V socket outlet
• 230V Swiss sockets
• 12V socket outlet
• 12V USB socket
• Parking heater (diesel) in the small drawbar box or large drawbar box
• LED strip light with switch underneath the wall unit
• LED strip light with dimmer switch inside tailgate
• 12V LED wall light with USB
• Inverter 1500W
• Shower version in corner unit, washroom or front washroom
• Thetford bench toilet

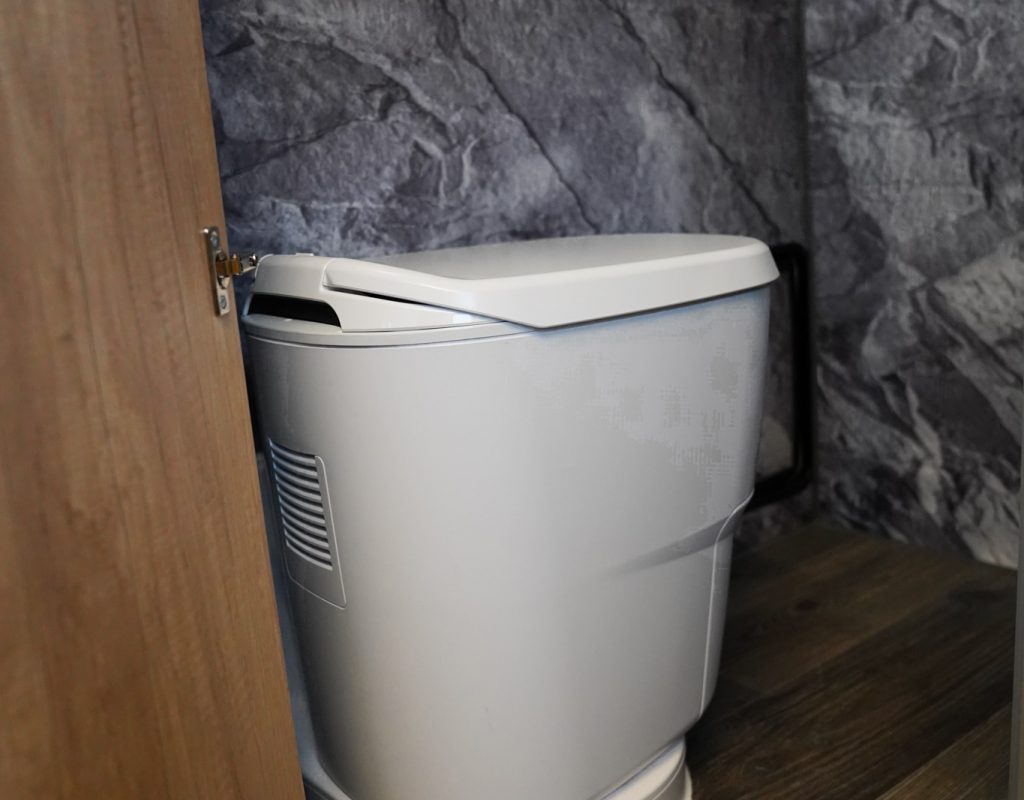

• Clesana C1 toilet
• Portable toilet
• Refrigerator
• Airline rails on the side walls
• Fittings for airline rails
• Motorbike rocker
• Motorbike lashing strap set
• Mini wood-burning stove
• Stool
• Table for C-rail

Both the access ramp and the cassette lift are installed at the rear.

• Manually extendable access ramp
  Platform size 2700 x 800 mm (LxW)
• Electrically extendable cassette lift for effortless entry and exit of the trailer with the wheelchair alone
  Load capacity 300 kg
  Lifting platform size 1200 x 760 mm (LxW)
